Gas Tube Kit with Pin

Who this is for
Anyone building or replacing the gas tube on an AR-15.
Action Gunner Take

Stainless steel gas tube with included roll pin. Nothing fancy — this is the part that routes gas from your gas block back to your bolt carrier to cycle the action. CMMG makes them to spec, they fit, and they work.

The important thing is ordering the right length for your barrel and gas system. If your barrel is drilled for a mid-length gas system, you need the mid-length tube. Getting this wrong means the tube either won’t reach the gas block or won’t seat properly in the upper receiver. If you’re not sure which gas system length your barrel uses, check the manufacturer’s spec sheet for your barrel before ordering.

Each kit includes the gas tube and a 5/64″ x 5/16″ roll pin for securing the tube to the gas block. You’ll need a roll pin punch and a small hammer for installation.

Price range: $15.95 through $19.95

Get notified when back in stock:

Notify when In Stock

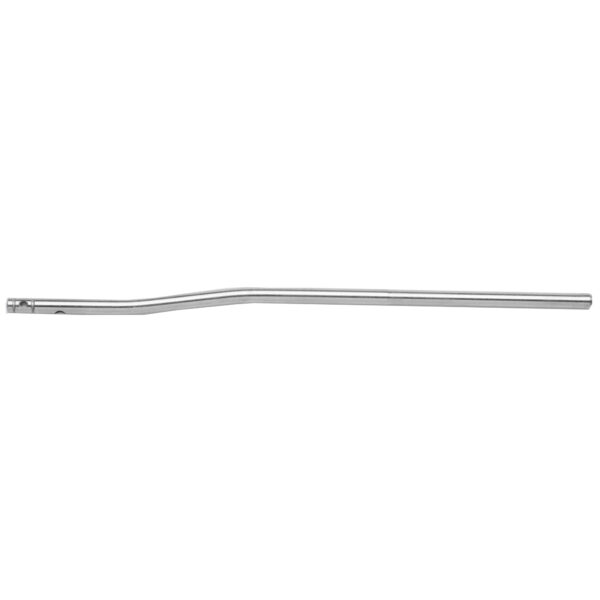

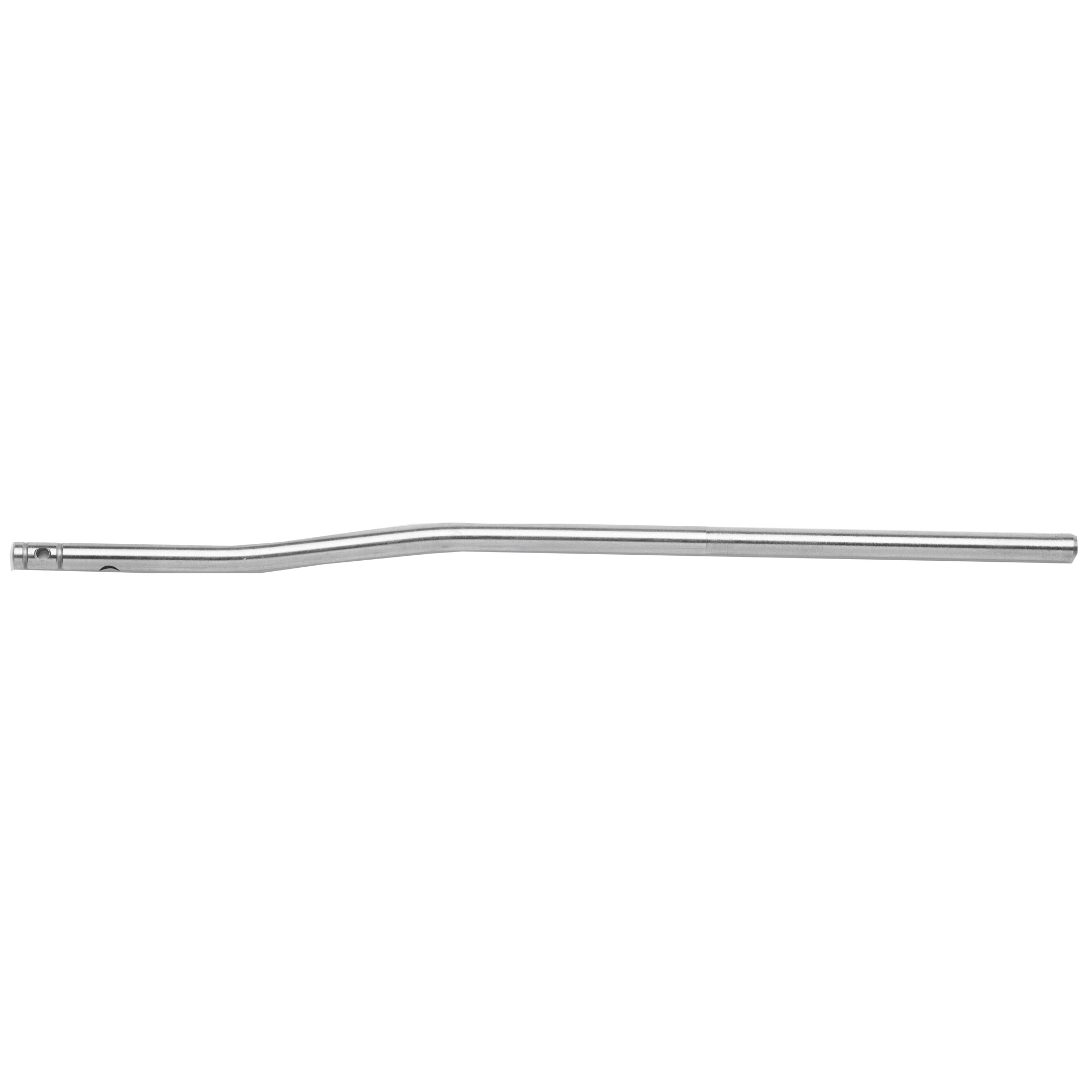

The CMMG Gas Tube Kit is a stainless steel replacement gas tube for AR-15 platform rifles. Each kit includes the gas tube and a 5/64″ x 5/16″ roll pin for securing it to the gas block.

The gas tube connects the gas block on your barrel to the gas key on your bolt carrier group. When a round fires, gas travels through the barrel’s gas port, into the gas block, through the tube, and back into the upper receiver to cycle the bolt. It’s a straightforward part, but it needs to be the correct length for your barrel’s gas system — an incorrect length tube will not function.

Available in four lengths:

  • Pistol — for pistol-length gas systems (typically barrels under 10″)
  • Carbine — for carbine-length gas systems (typically 10″–14.5″ barrels)
  • Mid-Length — for mid-length gas systems (typically 14.5″–18″ barrels)
  • Rifle — for rifle-length gas systems (typically 18″+ barrels)

These are general guidelines. Always confirm your barrel’s gas system length with the barrel manufacturer’s specifications before ordering, as some barrel makers use non-standard gas port locations.

Installation requires a roll pin punch and hammer. The tube inserts through the upper receiver and into the gas block, then is secured with the included roll pin driven through the gas block’s pin hole.

Specs:

  • Material: Stainless steel
  • Included: Gas tube + 5/64″ x 5/16″ roll pin
  • Compatibility: AR-15 platform
  • Available lengths: Pistol, Carbine, Mid-Length, Rifle
Spec Detail
Manufacturer CMMG
Product Type Gas Tube Kit w/ Roll Pin
Material Stainless Steel
Roll Pin Size 5/64″ x 5/16″
Platform AR-15
Available Lengths Pistol, Carbine, Mid-Length, Rifle
Kit Includes Gas tube (1), Roll pin (1)
Country of Origin USA
