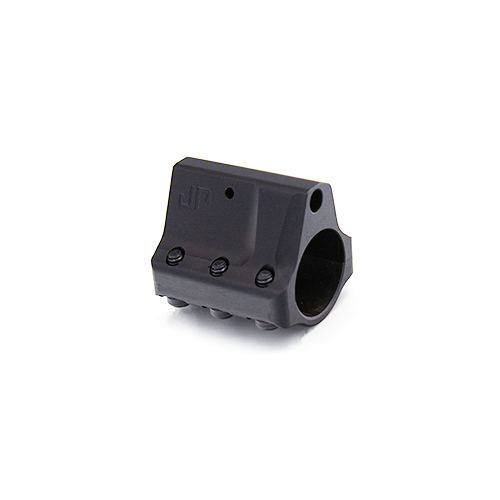

JP Adjustable Gas System
Low profile | 2-Piece
.750 bore
Black stainless steel
Detent Adjustment
The JPGS-9D is our minimized small bore design intended to mount underneath many hand guard models on the market. Its two-piece design allows for easier installations even on barrels with pin-and-weld muzzle treatments.
This model features our new click-adjustable detent system for precise adjustments and secure retention of your gas screw. Never lose you gas setting or screw.
Features:
Click-adjustable detent system for repeatable setup and secure retention of gas setting
Six clicks per rotation of gas screw for finer adjustments
Split yoke design for easy installation even on pin-and-weld barrels
Easy to access side gas adjustment
Internally retained detent components means no lost parts
Specifications:
Barrel Diameter: .750
Material: 416 stainless
Finish: Black
Weight: 2.37 oz.
Length: 1.28″
Height: 1.23″ (overall), .78″ (over bore)
Width: 1.16″
Attachment: 6-32 x 3/8″ socket head screws, T15 Torx drive (included)
(includes 5/64 x 5/16 roll pin for gas tube installation)
Adjustment: 8-32 set screw, 5/64 hex drive (included)
